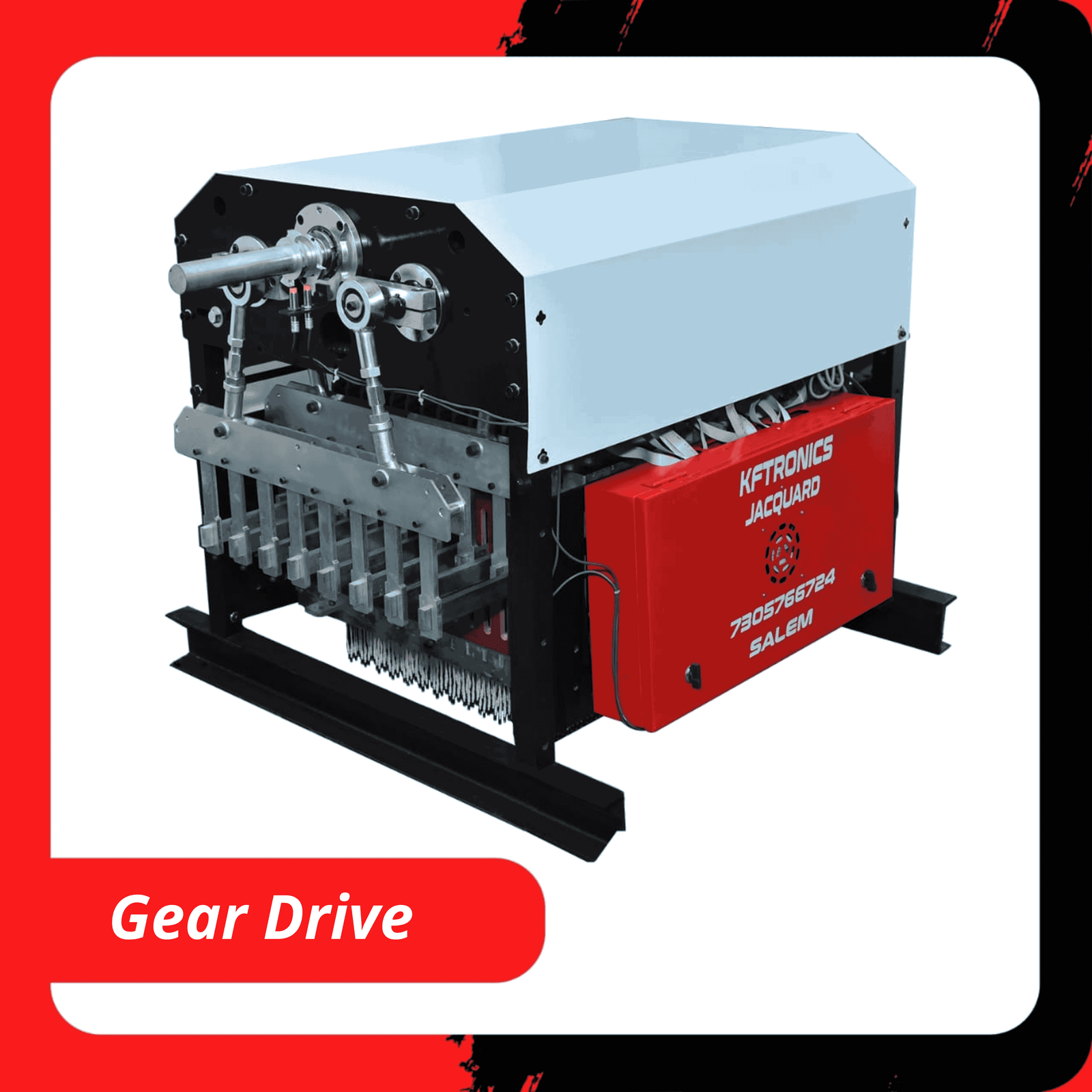

Electronic Jacquard Machine – GEAR DRIVE:

A gear drive electronic jacquard machine is a device that uses gears to control the movement of needles and hooks in a weaving loom. It can create intricate patterns on fabrics by selectively raising and lowering warp threads. The gear drive system ensures smooth operation, reduces noise and vibration, and allows for programming of different patterns and settings, making it versatile for various textile applications.

Salient Features

• Crossed teeth gear type.
• Supports speeds of up to 140 RPM.
• The capacity of the hooks ranges from 240 to 7000.
• The body frame is made of mild steel with a thickness of 8mm.
• Applicable for power loom and hand loom.

Add-on accessories

• Drive wheel
• Drive soft
• Comber board
• Bearing
• Fast hook connectors
• Chain
• Grease gun
• M5 module -1

Gear Drive Electronic Jacquard Machine:

In the fast-paced textile manufacturing industry, precision, efficiency, and versatility are crucial. Introducing the Gear Drive Electronic Jacquard Machine, a groundbreaking innovation revolutionizing the weaving of intricate patterns and designs in fabrics. With advanced technology and sturdy engineering, this machine is a cornerstone of modern textile production.

Key Features:

1. Gear Drive Mechanism: The gear drive system ensures reliable and precise control over pattern formation, offering consistent performance at high speeds to minimize downtime and enhance productivity.
2. Electronic Control System: The jacquard machine is powered by advanced electronics for seamless integration with CAD software, enabling accurate translation of digital patterns into fabric designs.
3. Versatile Design Capability: The electronic jacquard machine effortlessly handles intricate damask motifs, floral patterns, and geometric shapes with multiple harness frames for complex weave structures.
4. User-Friendly Interface: With an intuitive interface, operators can easily adjust parameters, monitor production metrics, and troubleshoot issues for smooth operation and quick setup.
5. Improved Efficiency: The jacquard machine optimizes yarn utilization, reduces material waste, and lowers energy consumption for sustainable and cost-effective textile production.
6. Reliability and Durability: Constructed with high-quality materials and precision manufacturing, the gear drive electronic jacquard machine offers exceptional durability and longevity for reliable performance in continuous operation.

Applications:

Fashion and Apparel: The machine produces fabrics that meet high fashion standards, from haute couture to everyday wear.

Home Textiles: Perfect for creating luxurious upholstery fabrics, curtains, and bedding with intricate designs.

Technical Textiles: Ideal for automotive interiors, aerospace applications, and industrial settings requiring durability and precise design.

Future Prospects:

As textile designs evolve, the demand for versatile jacquard machines is increasing. The gear drive electronic jacquard machine meets industry needs and enables manufacturers to leverage smart textiles and digital fabrication trends.

This machine represents innovation in textile machinery, combining traditional weaving techniques with electronic controls. Its seamless integration of complex designs and high-speed production is essential for textile manufacturers to stay competitive in the global market.

The main differences between a Gear Drive Electronic Jacquard Machine and a Chain Drive Electronic Jacquard Machine lie in their mechanical systems for operating the jacquard mechanism:

Gear Drive Electronic Jacquard Machine:

1. Mechanical System: Uses a gear drive mechanism to control the movement of harnesses and warp yarns, ensuring precise synchronization and consistent performance at high speeds.
2. Advantages:

 Precision and Durability: Gears are known for their accuracy and durability, ensuring reliable operation over extended periods.

Less Maintenance: Typically requires less maintenance compared to chain drive systems due to the robustness of gear mechanisms.

 Smooth Operation: Provides smoother and quieter operation compared to chain drives, contributing to overall machine efficiency.

3. Applications: Suitable for industries requiring high-speed weaving with intricate designs, such as fashion textiles, home furnishings, and technical textiles.

Chain Drive Electronic Jacquard Machine:

1. Mechanical System: Uses a chain and sprocket system to control the movement of the harnesses and warp yarns. Chains are linked to sprockets which regulate the motion of the harness frames.
2. Advantages:

Flexibility: Chains can accommodate a wide range of loom configurations and weaving patterns.

Ease of Adjustment: Chains can be adjusted relatively easily to accommodate different fabric types and weave structures.

Cost-Effectiveness: Generally, chain drive systems can be less expensive to manufacture and maintain compared to gear drives.

3. Applications: Commonly used in textile applications where flexibility and adaptability to different weaving patterns are crucial, such as carpet weaving and industrial fabrics.

Key Differences:

Mechanical Operation: Gear drives provide precise and synchronized movement, while chain drives offer flexibility and adaptability.

Maintenance: Gear drives generally need less maintenance because of their sturdy design, while chain drives may need more frequent adjustments and lubrication.

Speed and Efficiency: Gear drives are ideal for high-speed operations due to their smooth operation, while chain drives are better suited for applications that require frequent pattern changes and adjustments.

The decision between a Gear Drive Electronic Jacquard Machine and a Chain Drive Electronic Jacquard Machine hinges on the textile manufacturer's specific needs, such as weaving speed, pattern complexity, maintenance, and production efficiency.
